Nice Design Dot To Dot Lamination Embossing Kitchen Towel Paper Rewinding Machine

Name: Nice Design Dot To Dot Lamination Embossing Kitchen Towel Paper Rewinding Machine
Brand: XINYUN
Price: 48000 USD

Quality Nice Design Dot To Dot Lamination Embossing Kitchen Towel Paper Rewinding Machine wholesale

Brand Name : XINYUN

Model Number : XY-TQ-B

Certification : CE

Place of Origin : China

MOQ : 1

Price : 48000USD

Payment Terms : T/T

Supply Ability : 500 sets per year

Delivery Time : 60 days

Packaging Details : Standard export wooden pallet

Embossing_Type : steel to steel

Production_Speed : 200-230 m/min

Paper_Width : 1000-3000mm

Unwinding_Diameter : 1200-1500mm

Rewinding_Diameter : 80-300mm

Unwinding_Type : pneumatic jumbo roll stand

Product_Name : kitchen towel

Paper_Thickness : 20-30 gsm

Machine_Type : fully automatic

Product_Type : paper processing machine

Rewinding_Type : air shaft

Condition : New

Contact Now

XY-TQ-B Nice design dot to dot lamination embossing kitchen towel paper rewinding machine

Outline

Nice design dot to dot lamination embossing kitchen towel paper rewinding machine have core feeding unit,can do both with and without core.Raw material from jumbo roll after full embossing or edge embossing, then perforation, end cutting and spray the tail glue become a log.Then it can working with cutting machine and packing machine to become the finished products. The machine is controlled by PLC, people operate it through touch screen, the whole process is automatic, easy to operate, lower the man cost. And Our machine can special-made according to clients’ requirements.

The production process is: Unreeling — Embossing — Perforating— Lamination— Rewinding— Tail-gluing— Edge trimming---Automatic core loading.

Nice Design Dot To Dot Lamination Embossing Kitchen Towel Paper Rewinding Machine

Functions and Features --- Wall Type Automatic Rewinding Machine

1. Automatic core feeding system, automatic log pusher after rewinding, then rewinding the new log again.

2. Automatic edge-trimming, core feeding, glue spraying and sealing synchronously in one time. Leaving 10-18mm tail, easy to rewind again, so reducing shortcut waste and save the cost.

3. Adopts international advanced PLC programmable controlling technique, man-machine interface operation, data set and parametric fault shows on touch screen.

4. Adopts 4 pieces high Precision spiral knives, low noise, clear perforation, adopt gearbox to have bigger range.

5. Three horizontal type back stands, pneumatic loading system, with wide driving flat belts; each jumbo roll can be adjusted independently.

6. Embossing Unit: adopt point to point embossing rollers, making the two layers match well, the paper is soft and has clear patterns

7. Adopt jogging switches for wearing the paper, easy and safe to operate.

Product Parameters

Technical data:

Jumbo roll max width	1850mm (Other size can be specified)
Jumbo roll diameter	Φ1200mm
Jumbo roll inner core diameter	3inches(76.2mm)
Finish product diameter	Φ70-φ280mm
Finish product Inner core diameter	φ38-φ76mm
Perforation distance	120-150mm
Production speed	180-230m/min
Parameter set	HMI, Touch Screen
Pneumatic system	3HP Air Compressor, Minimum Pressure: 5kg/cm 2Pa(Provide by user)
Unwinding transmission	Variable stepless speed regulation
Rewinding Unit	With core or coreless

Two independent jumbo roll stands

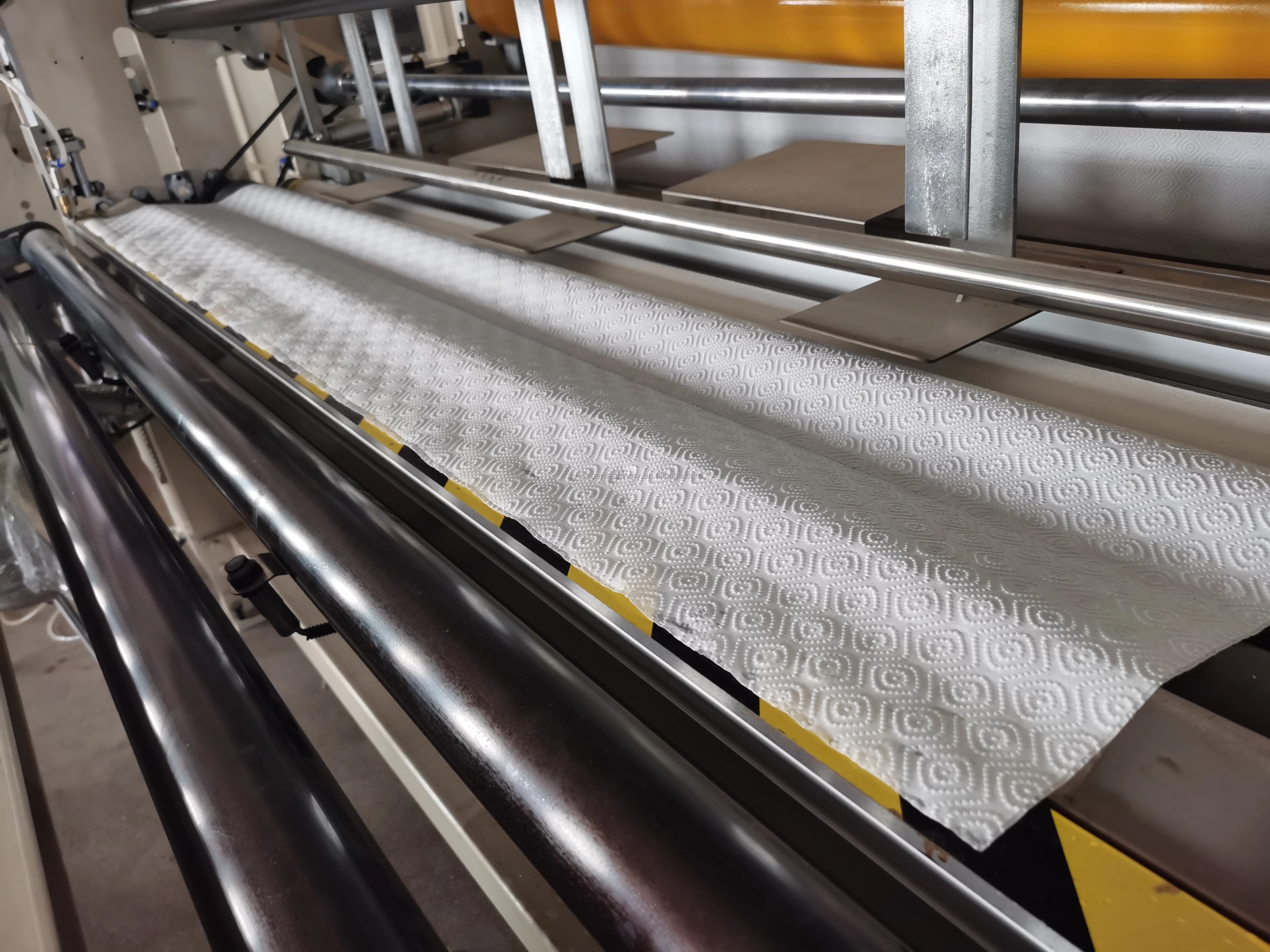

Steel To Rubber Embossing Device

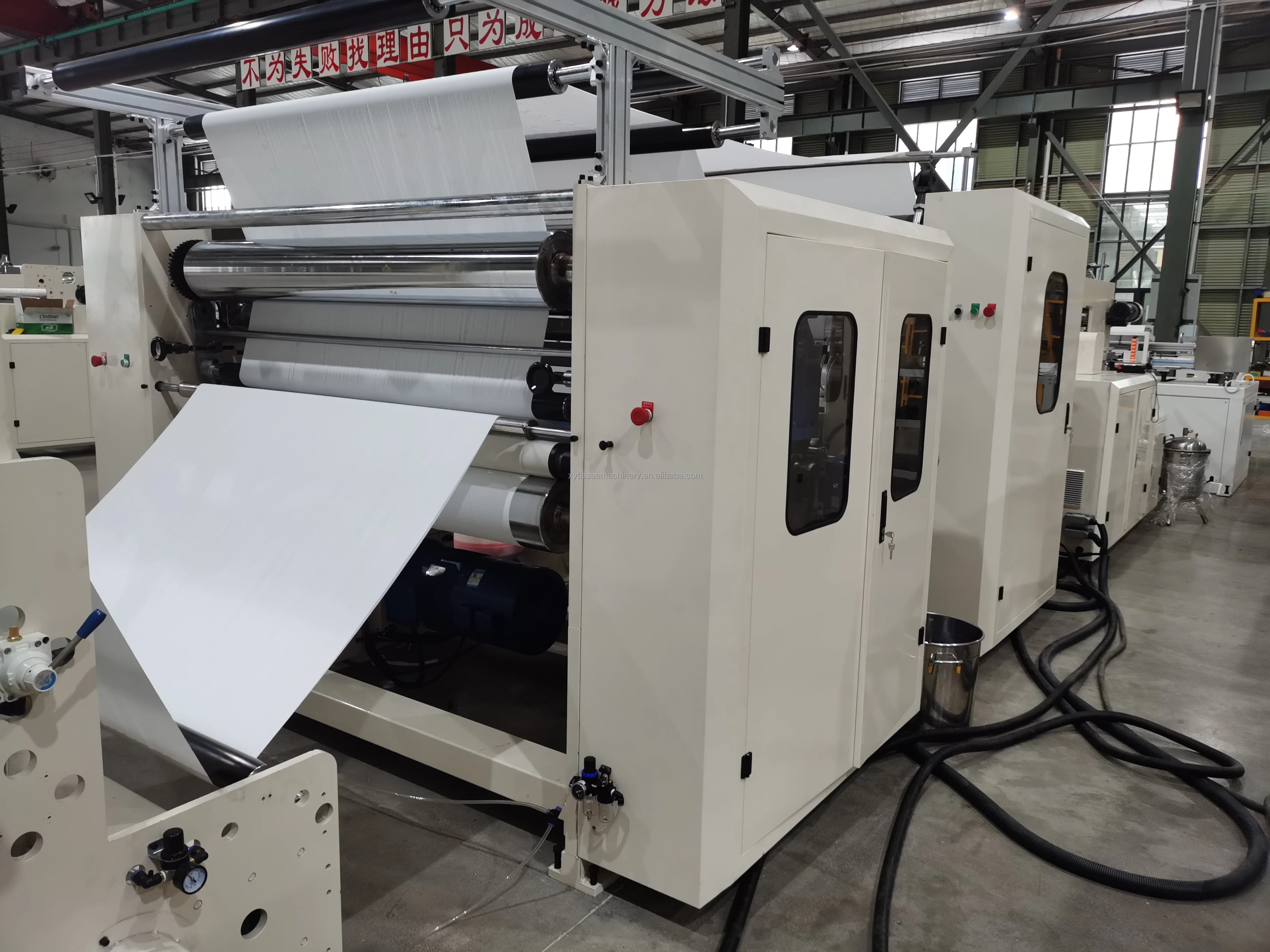

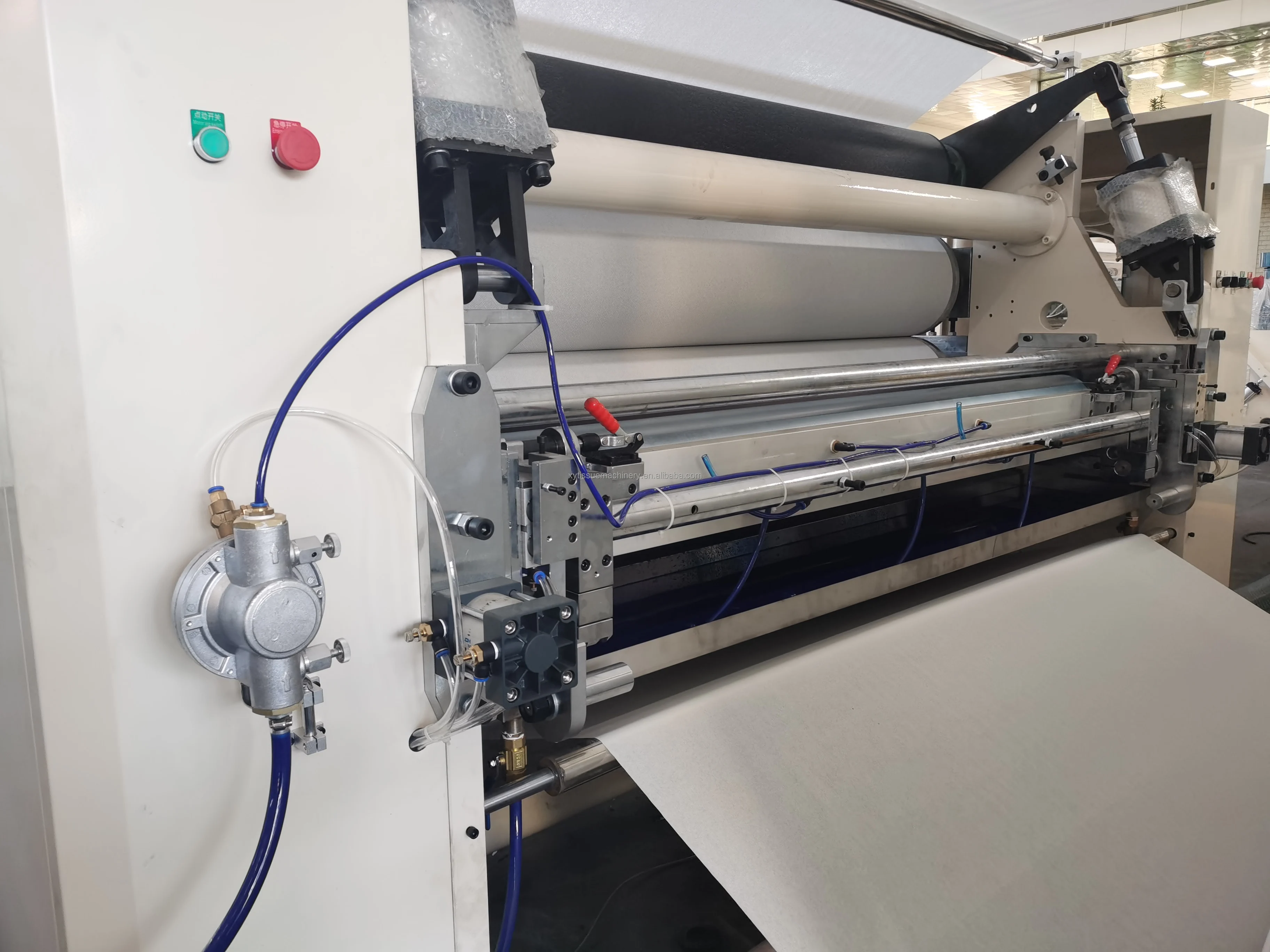

Glue Lamination Device

This device is optional, and it often used in kitchen towel and maxi roll. To make paper with higher water absorption.

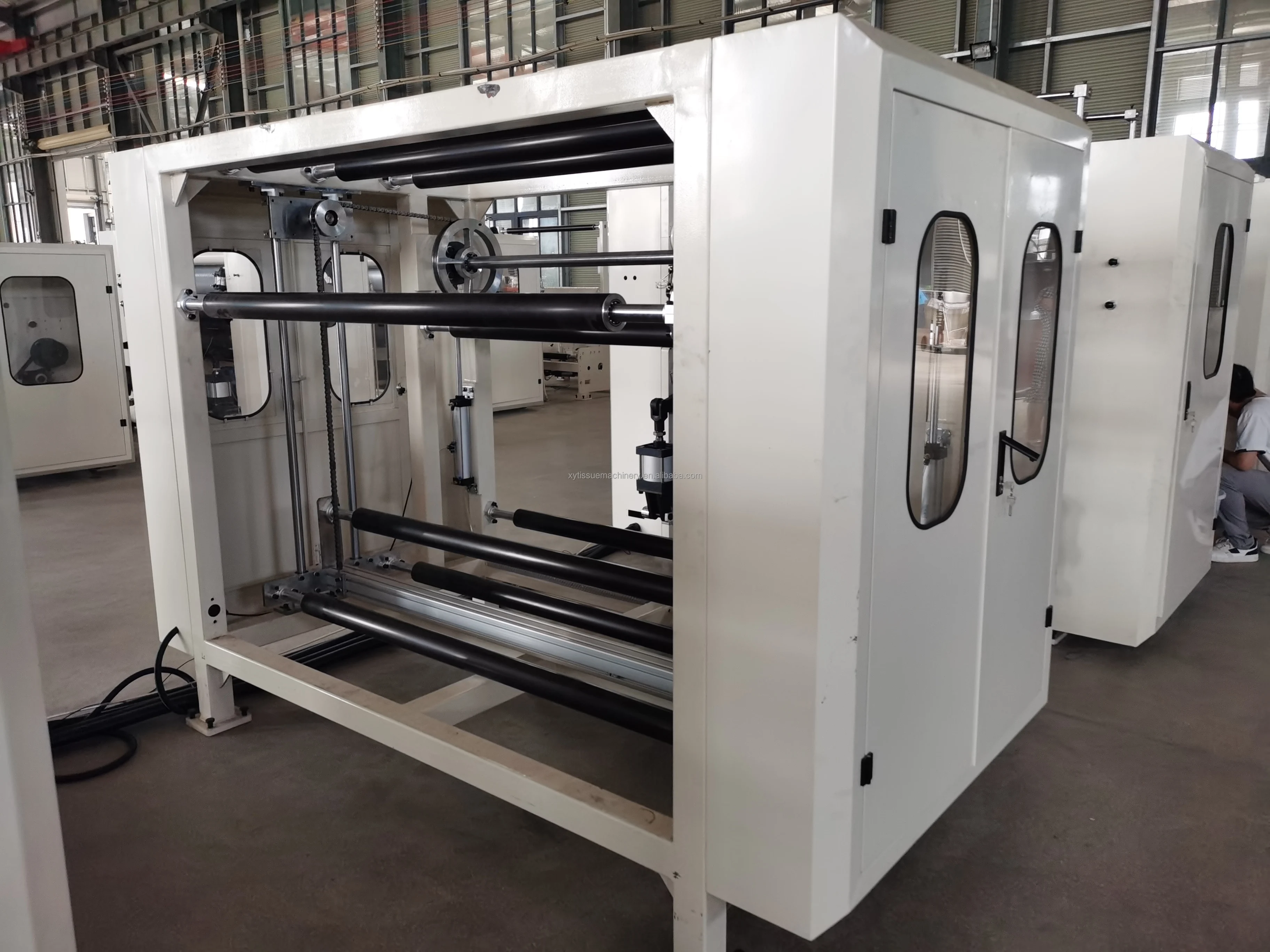

Accumulator for glue laminated paper

It is for glue lamination continue running, and guarantee all paper with glue.

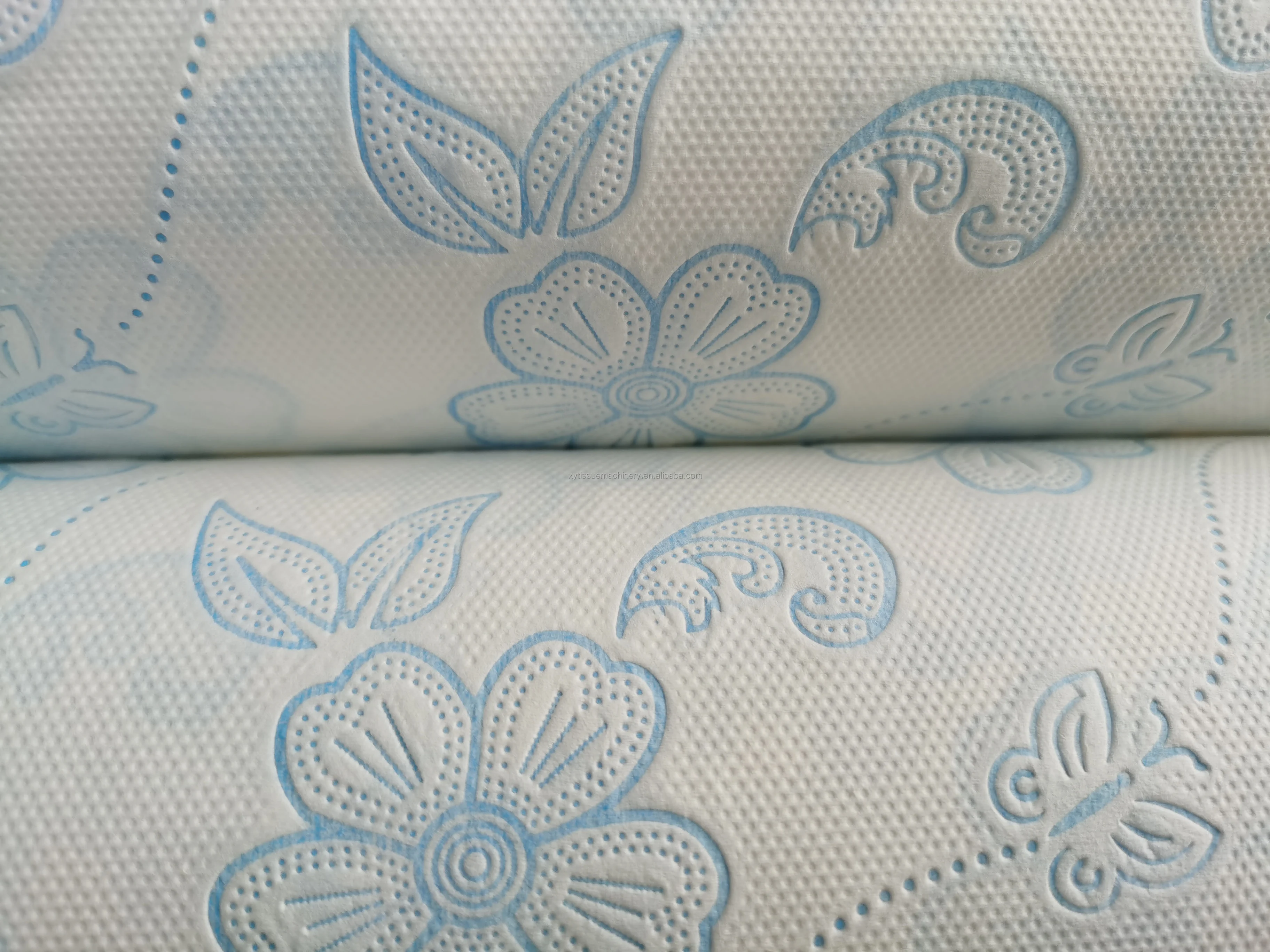

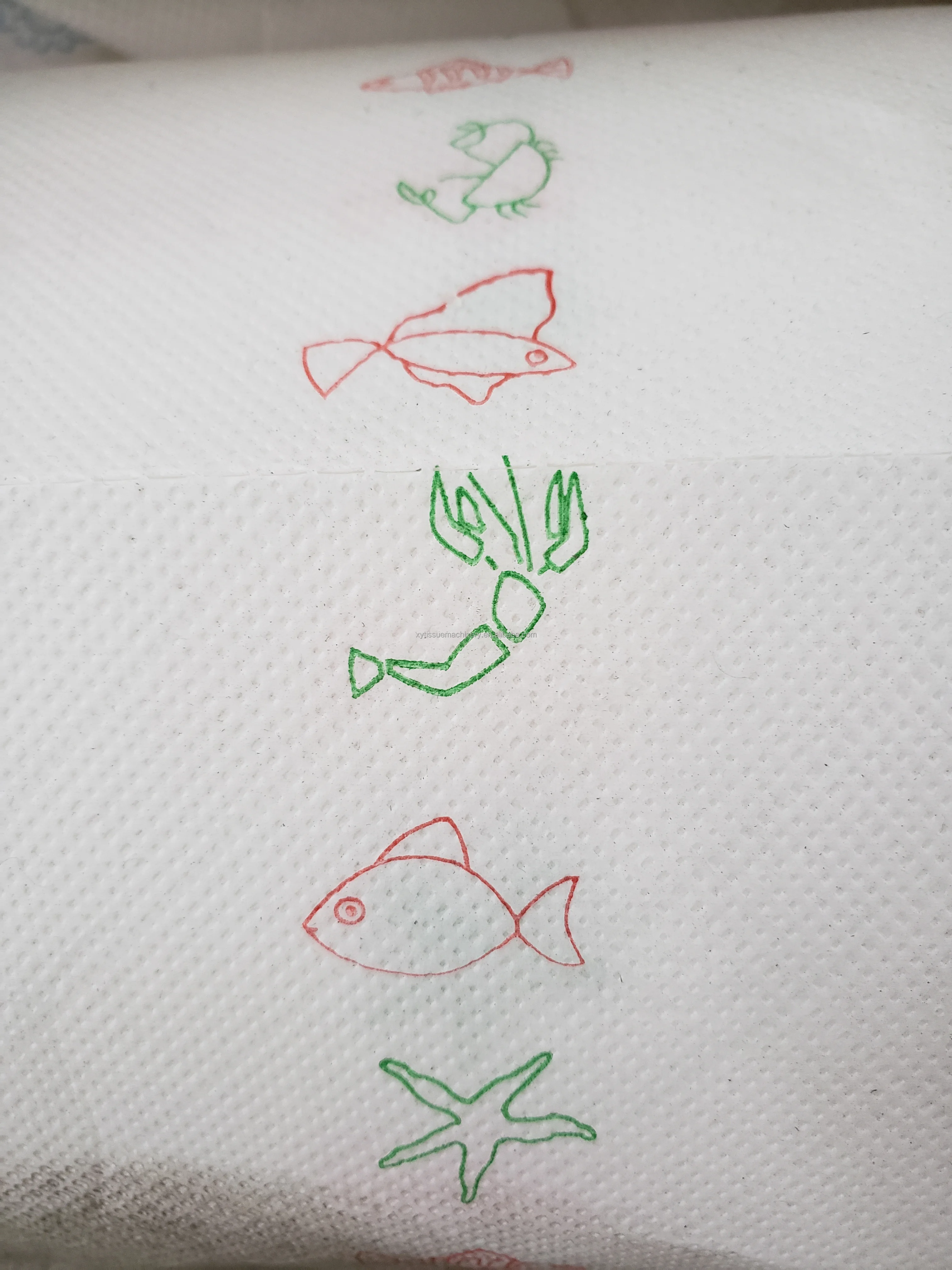

Color Printing Device

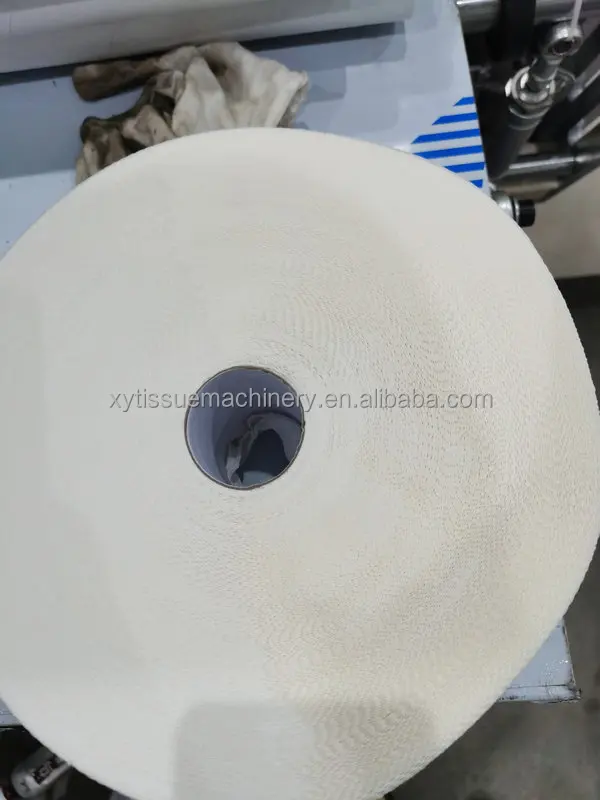

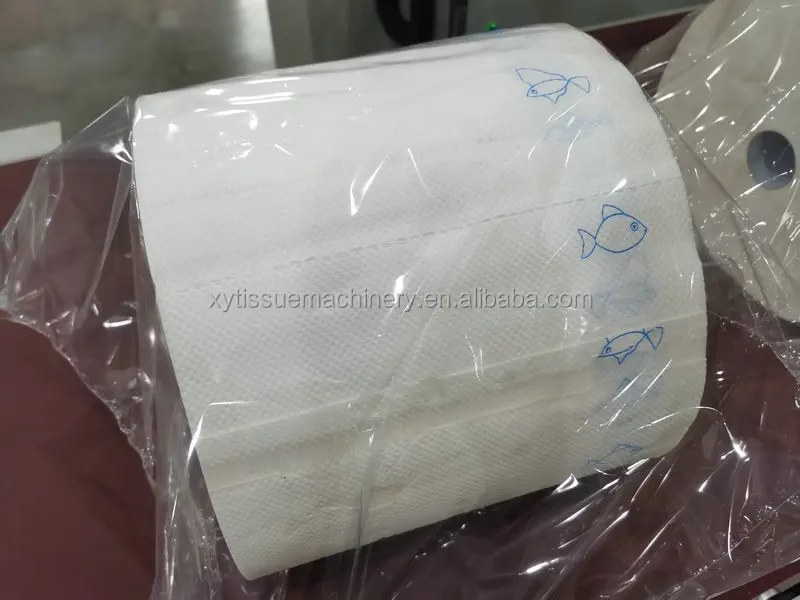

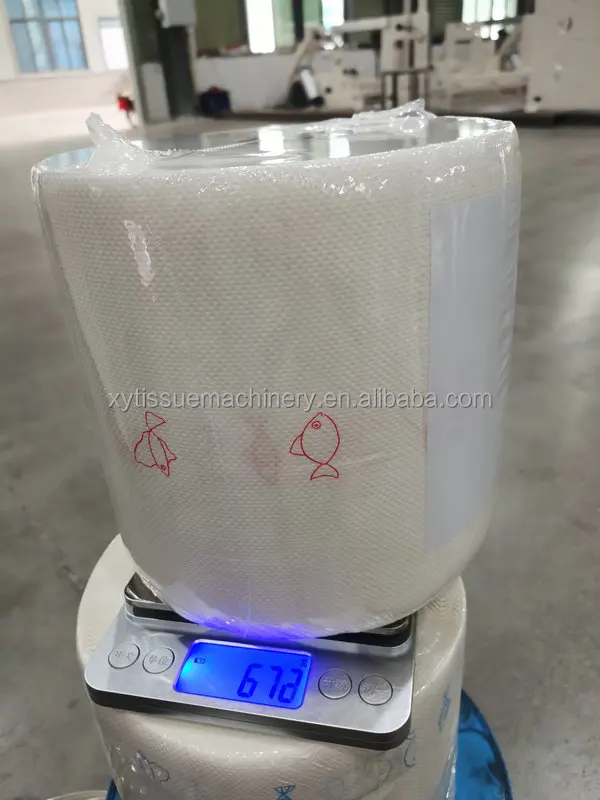

Finished product

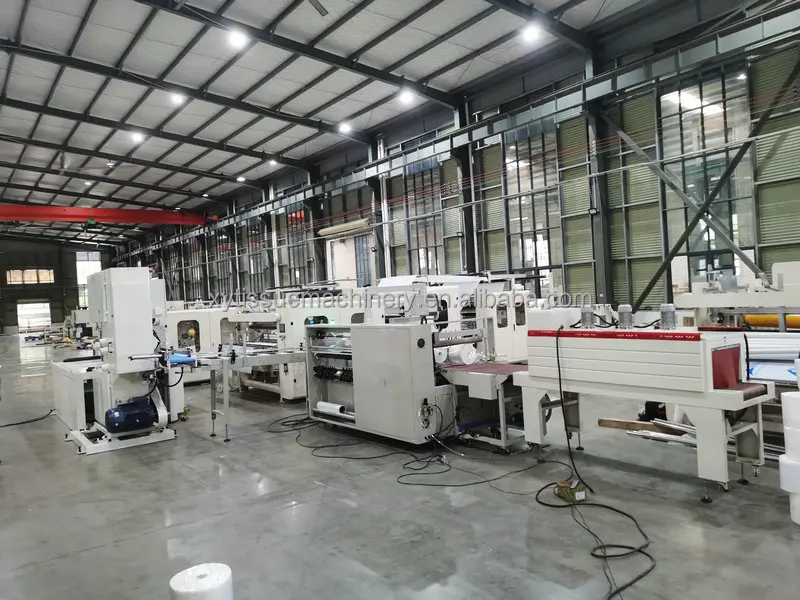

Automatic Glue Lamination Maxi Roll Kitchen Towel Machine Production Line

There are four machines in this production line.
1) XY-TQ-B Full automatic toilet paper making machine
High speed:230 meters/minute Capacity for one day: about 2 Tons(about 20,000 rolls/8 hours)
2) XY-AI-500 Automatic maxi roll band saw cutting machine
Capacity: 15-30 rolls/min Cutting diameter:150-280mm
3) XY-TN-269 Automatic maxi roll shrink packing machine Capacity: 10-20 bags/min
4) Optional: XY-SD-B Automatic Paper Roll Core Making Machine
Capacity: 10-20 m/min

Q: Are you trading company or manufacturer
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 60-90 days if the goods are not in stock, it is according to
quantity.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
