XY-AI-398D Fully Automatic Toilet Tissue Paper 10 Rolls Bundle Packing Machine
This machine use plastic bag film to pack toilet paper rolls.
Structure Features:
1. This device features servo motor driving, a touch screen, and a PLC control system. The parameter settings are convenient and quick.
2. The machine automatically completes the product process, including automatic feeding, arranging, opening the bag, filling into the bag, inserting angle, and sealing.
3. Various kinds of different specifications can be changed freely and quickly.
4. The world's first 180 - degree flip on the bag body enables the device to be smaller and consume less energy.
5. Fault self-diagnosis function, clear failure display.
6. The temperature is controlled by an independent PID system, which makes it better adapted to various packaging materials.
7. All controls are accomplished through software, making it convenient for functional adjustment and upgrading.
8. All products are self - developed and have applied for national invention patents, enjoying full independent intellectual property rights. They represent the advanced technological level in the field of bag packaging and offer a more competitive price.
Performance Upgrade:
1. Advanced double layer arranging system achieve the double layer kitchen paper:2,4 and 6rolls, toilet roll paper:12,18,24 roll of matual convert packaging requirements
2. The 18 roll and 24 roll of large capacity packaging meet the rapid development of the e-commerce online sales of packaging needs
3. From bagging to seal forming, the whole process are protected by side guard, effectively avoid the phenomenon of broken bags
4. The constant temperature of the hot plate control by imported temperature controller ensure that the seal is more reliable and no false seal
5. Four directions for dynamic supporting mechanism, and effectively improve the stability and open the bag bag
Main Technical Parameter:
| Packing Dimension(mm) | max L420x W360xH250 |
| Packing size | Double layer 4,6,10,12,18,24 row |
| Set Packing Speed(bags/min) | 18bags/min |
| Packing flim | PE Precase Bag |
| Total Power | 9KW |
| Air supply | 5-7kg/cm2 |
| Power supply | 380V/220V-50HZ |
| Weight | 1500kgs |
| Outline Dimension(mm) | 2800x1500x1950 |

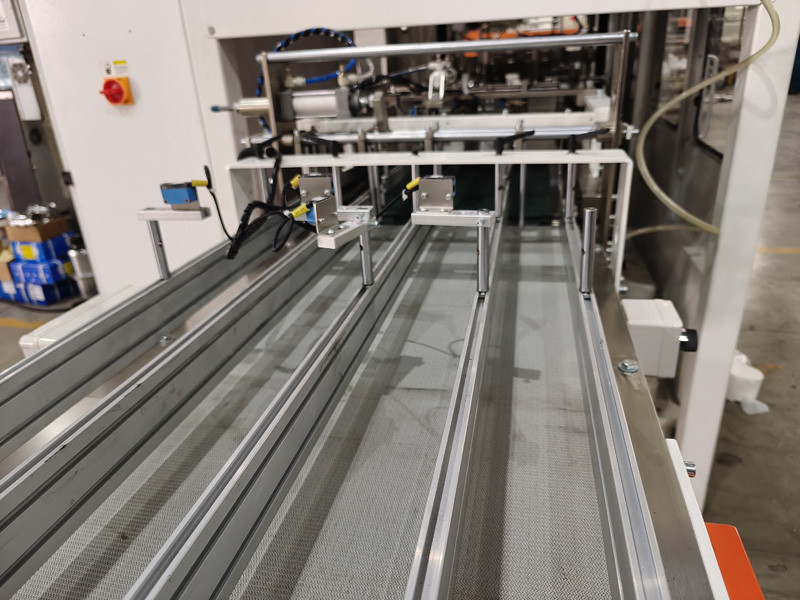

Detail Pictures:
FAQ:
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 60-90 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
